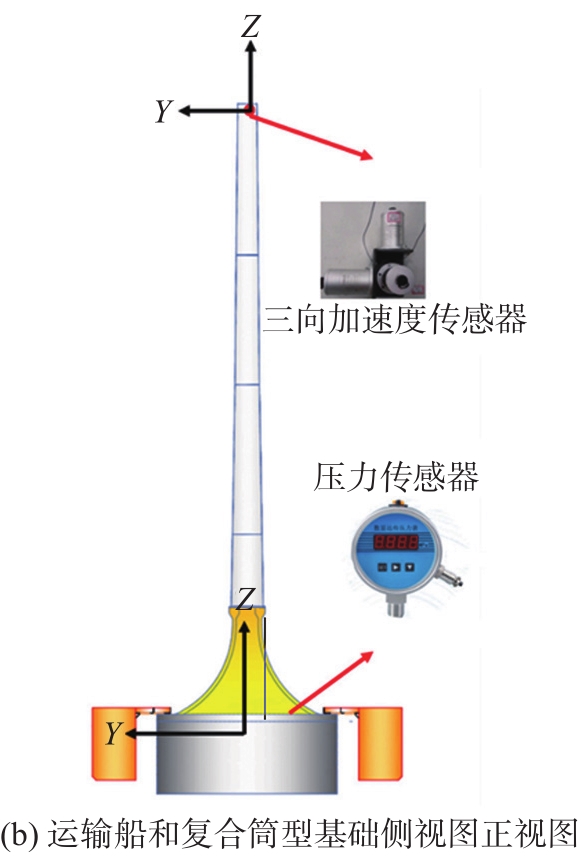

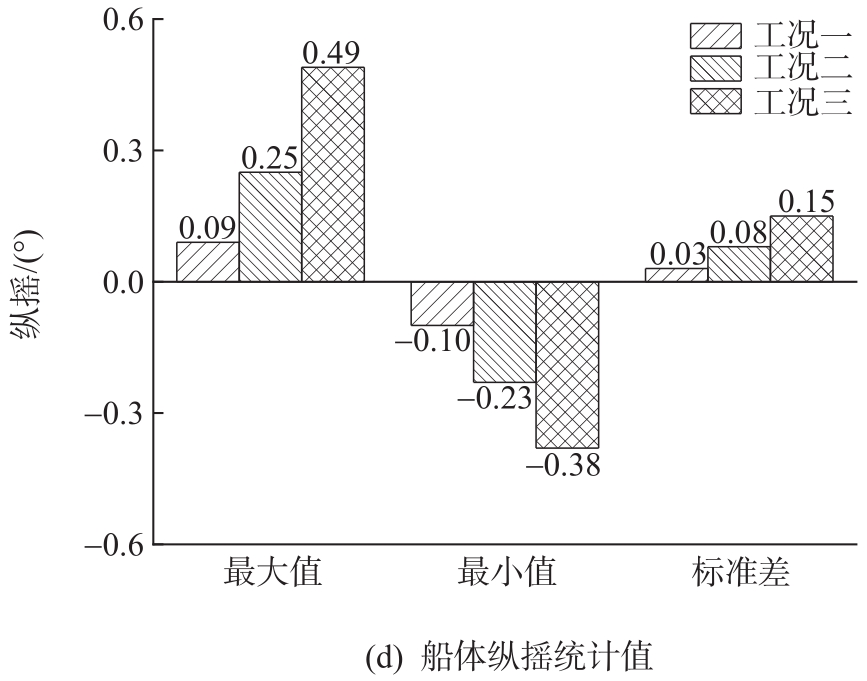

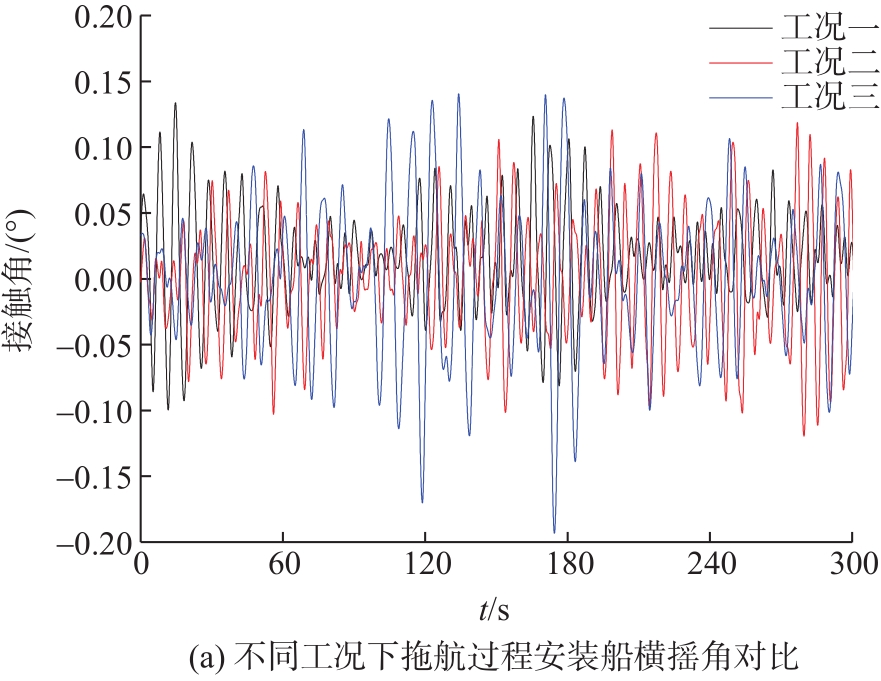

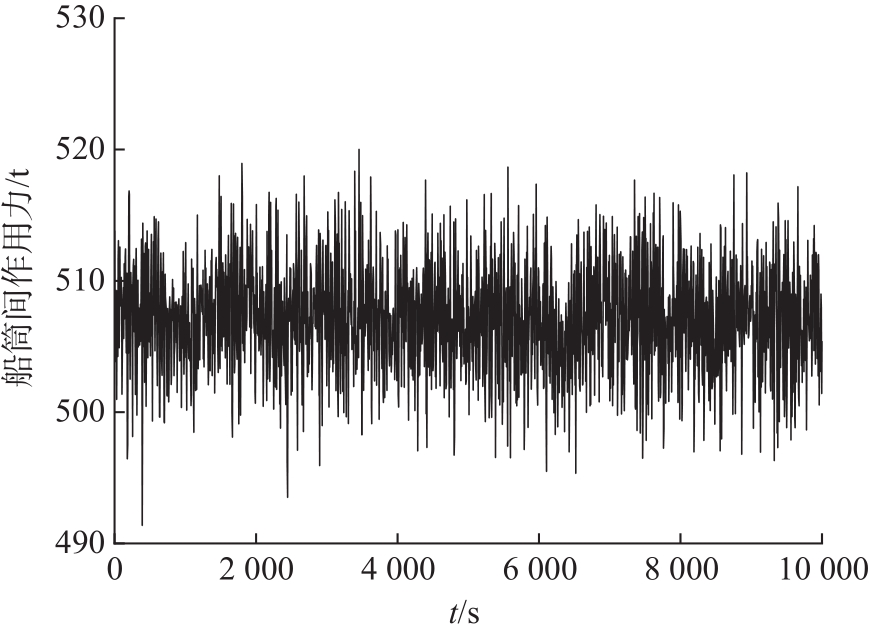

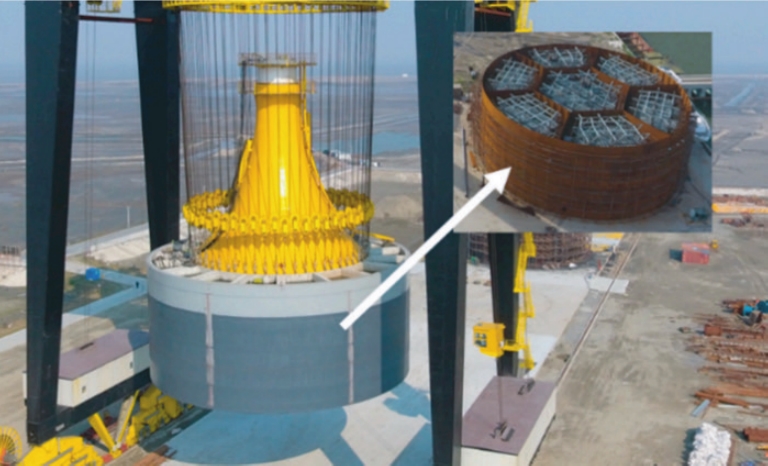

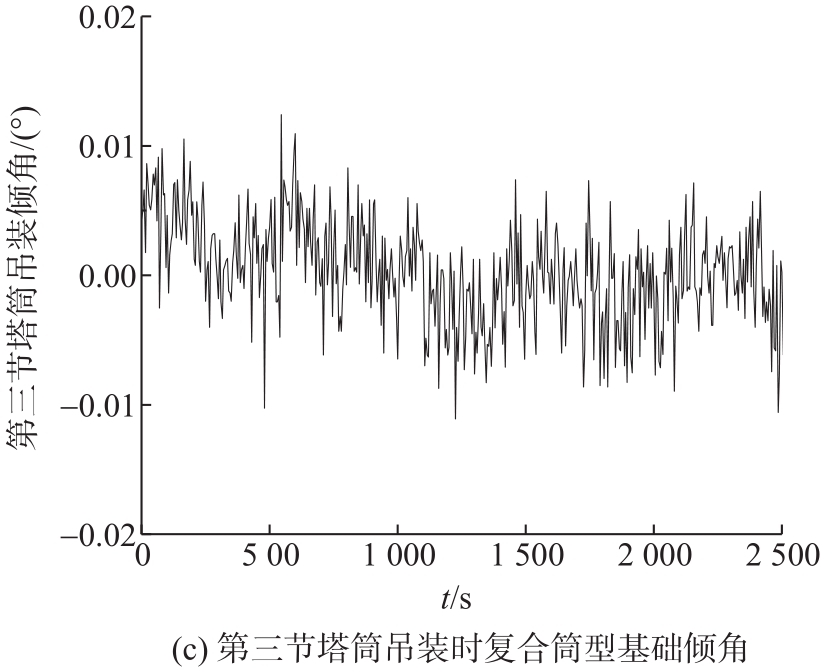

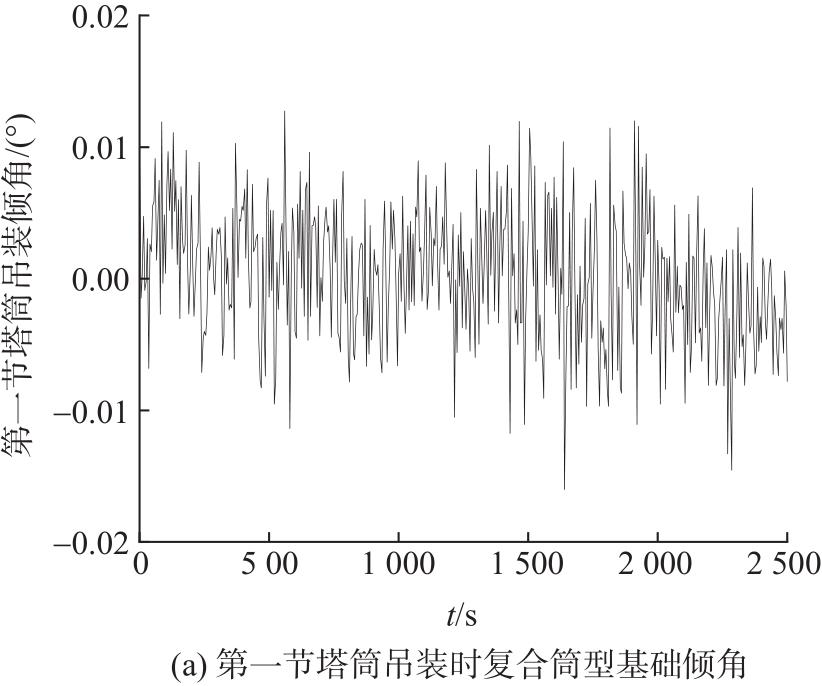

摘要:目的 海上风力发电复合筒型基础作为一步式运输安装技术的基础，已经广泛用于海上风电的发展。文章主要研究内容为保证复合筒型基础在施工过程中的稳定性。方法 通过一步式运输安装船运输现场实验，对江苏响水25#风电整机施工过程中塔筒、叶片吊装以及拖航过程进行实时监测。结果 结果显示，塔筒、叶片吊装过程中复合筒型基础倾角较小；拖航过程中船筒间相互作用力、横纵摇角以及筒内液封高度均满足要求。结论 表明塔筒、叶片吊装过程中，复合筒型基础具有良好的稳定性；拖航过程中，运输船与复合筒型基础紧密贴合，能保证运输过程中整体结构的稳定；并且复合筒型基础在拖航过程中能够提供稳定的浮力。Abstract:Introduction As the foundation of one-step transportation and installation technology, composite bucket foundation of offshore wind power generation has been widely used in the development of offshore wind power. The main research content of this paper is to ensure the stability of composite bucket foundation during the construction.Method Through the transport field experiment of one-step transport installation ship, the real-time monitoring of tower drum and blade lifting and towing process during the construction of Xiangshui 25# wind turbine in Jiangsu was carried out.Result The results show that the dip angle of composite bucket foundation was smaller in the process of tower drum and blade lifting; during towing, the interaction force between drums, the roll angle and the height of liquid seal in tubes all met the requirements.Conclusion The results show that the composite bucket foundation had good stability during the tower drum and blade lifting process. In the towing process, the transport ship was closely fitted with the composite bucket foundation, which can ensure the stability of the whole structure in the transportation process. Moreover, the composite bucket foundation can provide stable buoyancy in the process of towing.
-
![]()

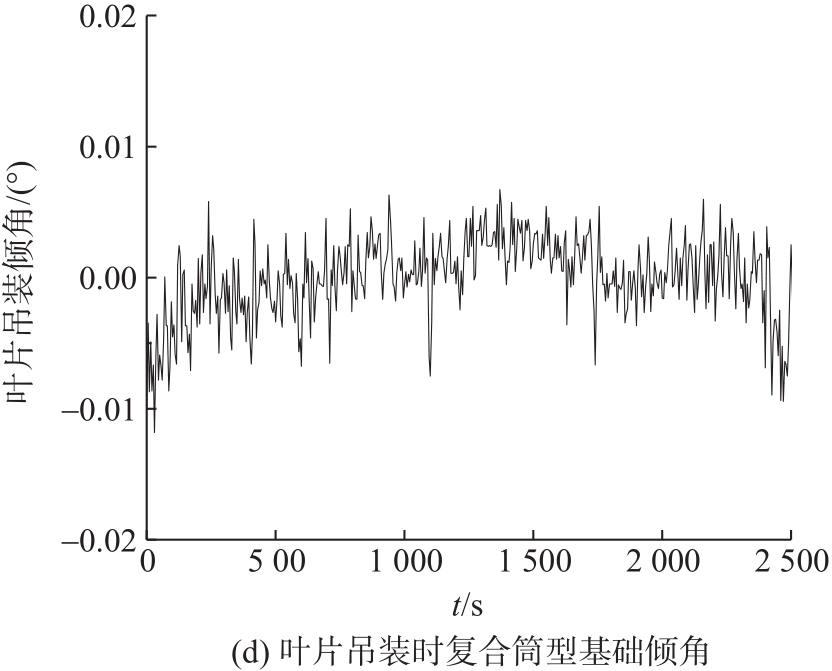

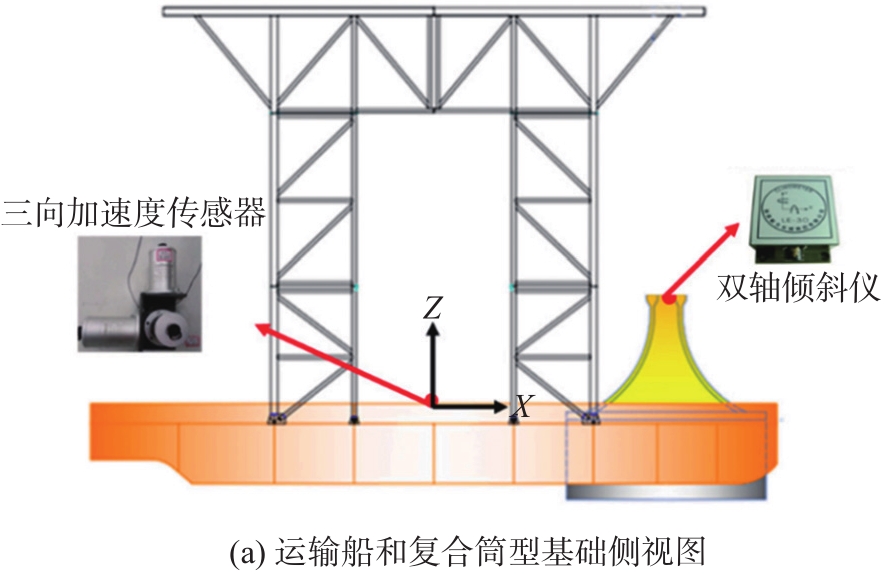

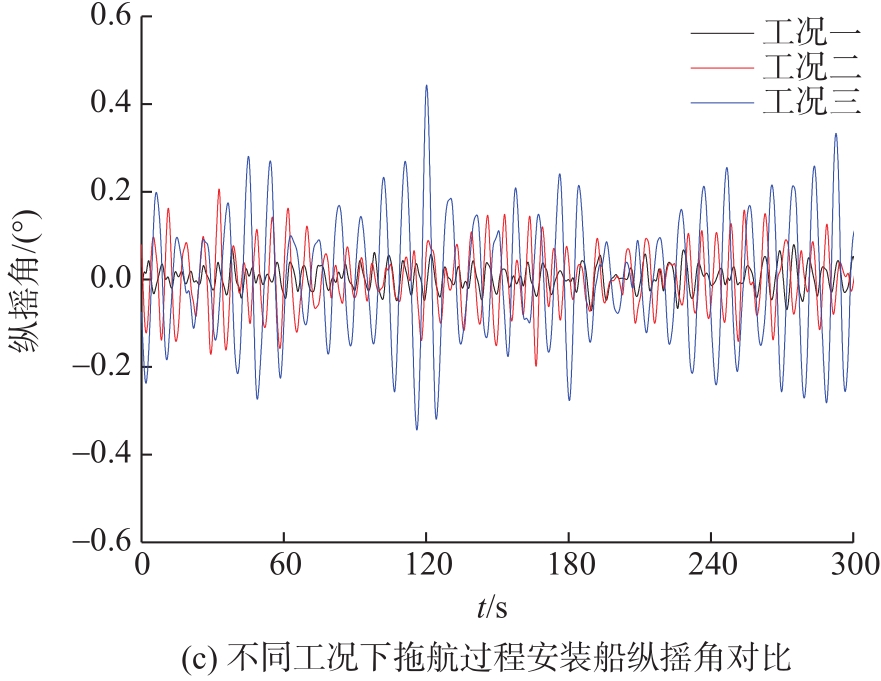

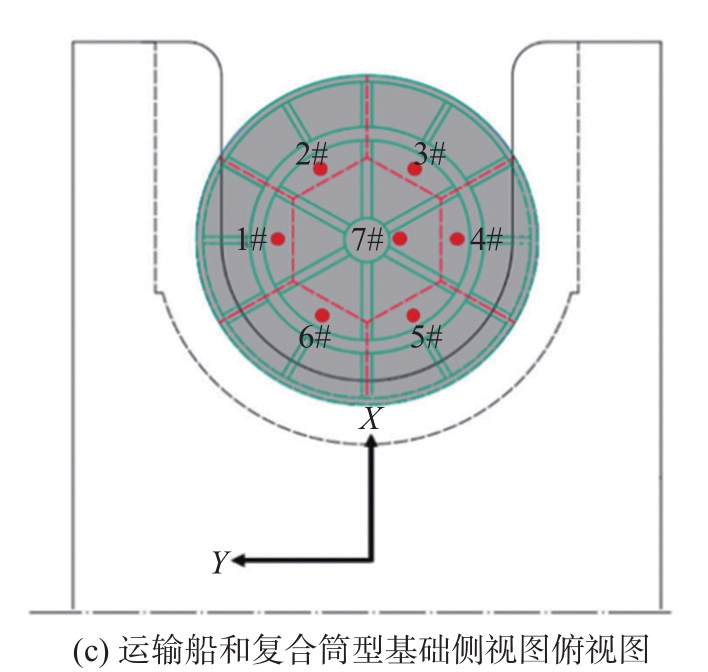

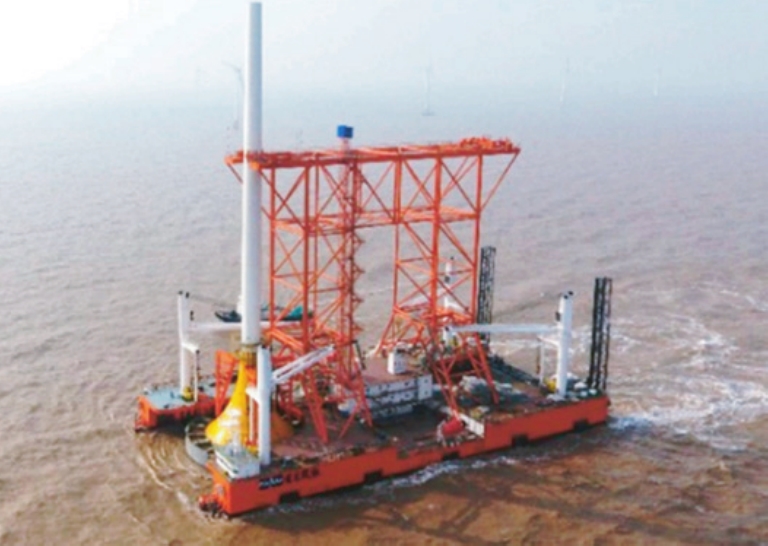

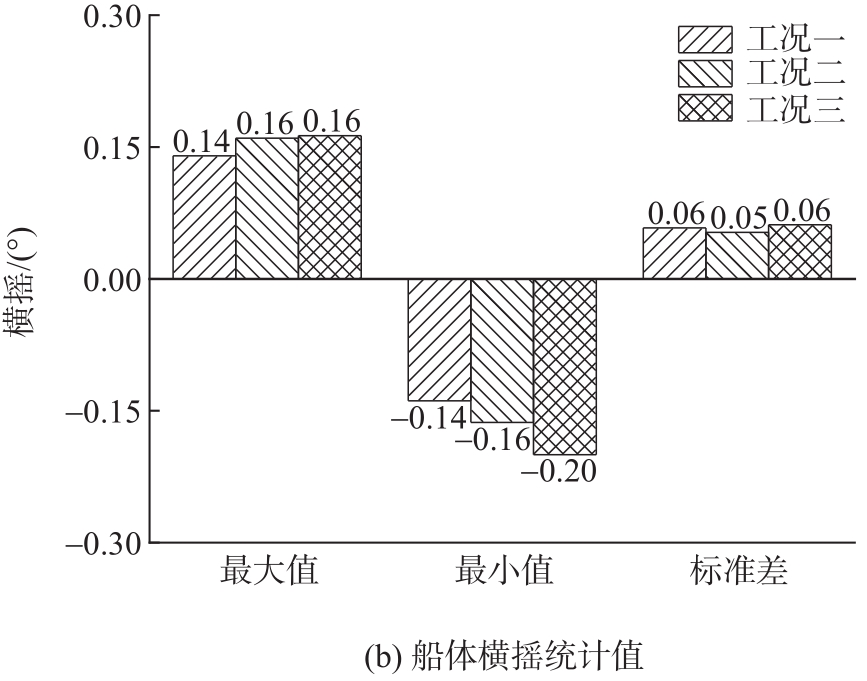

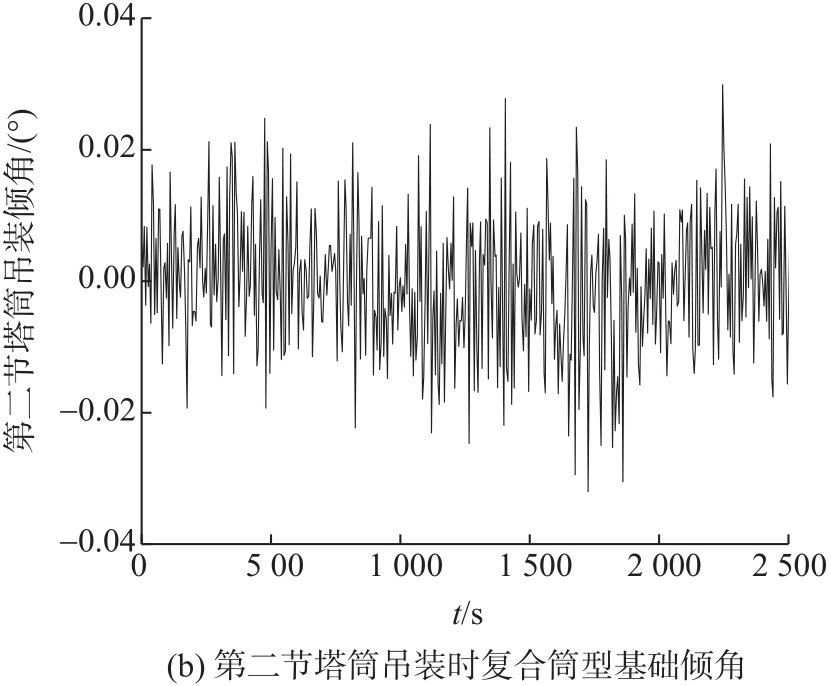

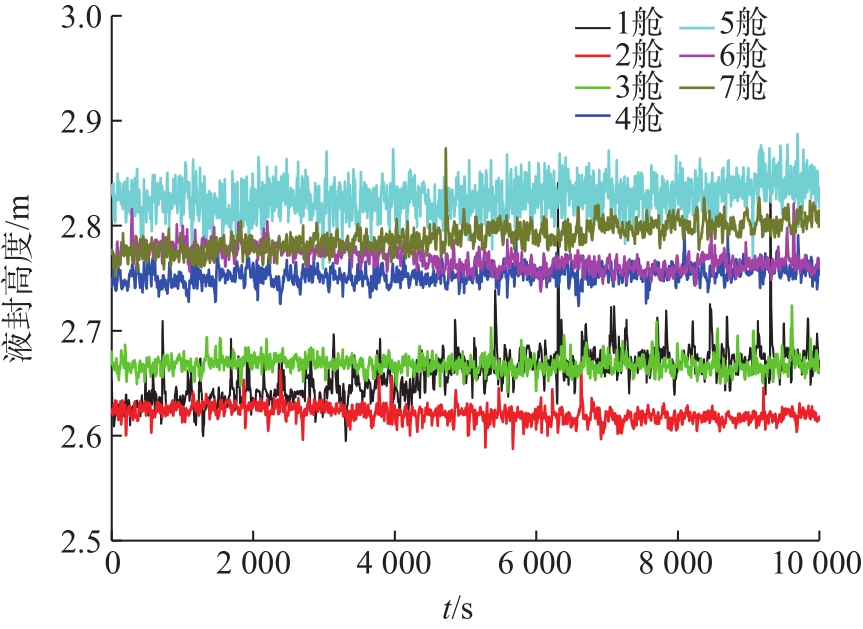

图 7 筒型基础拖航过程筒内液封高度
Figure 7. Liquid seal height in cylinder during tugging process of cylinder foundation
表 1 整体结构参数表
Table 1
Overall structural parameters 参数 数值 参数 数值 船体长度/m 103 筒径/m 30 船体宽度/m 51 筒高/m 12 船体深度/m 9 过渡段高度/m 20 设计吃水/m 6 塔筒高度/m 78.5 船体吨位/t 16 900 塔筒重量/t 207.0 上槽直径/m 25 总重量/t 2 700.0 下槽直径/m 37 横摇固有周期/s 8.5 桁架高度/m 62 纵摇固有周期/s 11.0 — — 垂荡固有周期/s 6.7
下载: 导出CSV
-
[1] 闵巧玲. 复合筒型基础稳性及拖航运动特性分析 [D]. 天津: 天津大学, 2018. MINQ L. Analysis of stability and towing motion characteristics of composite cylinder foundation [D]. Tianjin: Tianjin University, 2018.
[2] LIUX Q, ZHANGP Y, ZHAOM J, et al. Air-floating characteristics of large-diameter multi-bucket foundation for offshore wind turbines [J]. Energies, 2019, 12(21): 4108.
[3] DINGH Y, LIUY G, ZHANGP Y, et al. Model tests on the bearing capacity of wide-shallow composite bucket foundations for offshore wind turbines in clay [J]. Ocean Engineering, 2015, 103(7): 114-122.
[4] ZHANGP Y, HANY Q, DINGH Y, et al. Field experiments on wet tows of an integrated transportation and installation vessel with two bucket foundations for offshore wind turbines [J]. Ocean Engineering, 2015, 108(11): 769-777.
[5] ZHANGP Y, DINGH Y, LEC H. Hydrodynamic motion of a large prestressed concrete bucket foundation for offshore wind turbines [J]. Journal of Renewable and Sustainable Energy, 2013, 5(6): 063126.
[6] 刘宪庆. 气浮筒型基础拖航稳性和动力响应研究 [D]. 天津: 天津大学, 2012. LIUX Q. Study on stability and dynamic response of air buoy foundation towing [D]. Tianjin: Tianjin University, 2012.
[7] 丁红岩, 韩彦青, 张浦阳, 等. 气压对海上风电一步式运输安装船稳性的影响 [J]. 天津大学学报(自然科学与工程技术版), 2017, 50(9): 915-920. DINGH Y, HANY Q, ZHANGP Y, et al. Journal of Tianjin University (Natural Science and Engineering), 2017, 50 (9) 915-920.
[8] THIAGARAJANK P, MORRIS-THOMASM T, SPARGOA. Heave and pitch response of an offshore platform with air cushion support in shallow water [C]//Anon.Asme International Conference on Offshore Mechanics and Arctic Engineering, British Columbia, June 20-25, 2004. Canada: [s.n.], 2004: 817-823.
[9] LEEC H, NEWMANJ N. Wave effects on large floating structures with air cushions [J]. Marine Structures, 2000, 13(4): 315-330.
[10] 别社安, 时钟民, 王翎羽, 气浮结构的静浮态分析 [J]. 中国港湾建设, 2000(6): 18-23. BIES A, SHIZ M, WANGL Y. Static floating state analysis of air-floating structure [J]. China Harbour Construction, 2000 (6): 18-23.
