摘要:目的
国际氢能委员会预测，至2050年氢能将占全球终端能源总需求的18%。在绿氢制备技术路径中，光伏发电的电力成本是影响电解水制氢经济性的关键因素。
方法文章基于中国典型地区的光照资源数据，构建平准化度电成本（LCOE）测算模型，分析当前及极限组件成本下的光伏发电成本，并量化光电转换效率提升对LCOE的边际影响。
结果研究结果表明：在年有效发电时数
1200 h条件下，晶硅电池系统的LCOE可降至0.133元/kWh；而具有更高理论转换效率的钙钛矿电池、晶硅-钙钛矿叠层电池及双叠层电池系统，分别在年发电时数1008 h、1092 h和864 h时即可实现0.1元/kWh的LCOE阈值。当光伏LCOE突破0.1元/kWh时，电解水制氢成本可降至6.16元/kg。结论随着组件成本下降和转换效率提升，我国90%以上地区的光伏LCOE将具备突破0.1元/kWh的潜力。在此成本区间内，绿氢生产成本将较传统灰氢显现竞争优势，有望成为主流氢源。文章为光伏制氢技术的产业化推进提供了量化依据，对优化能源结构转型路径、实现环境效益与经济效益的协同发展具有重要参考价值。
Abstract:ObjectiveInternational Hydrogen Council predicts that hydrogen energy will account for 18% of the total global end-use energy demand by 2050. In the technical path of green hydrogen preparation, the electricity cost of photovoltaic (PV) power generation is a key factor affecting the cost-effectiveness of hydrogen production by water electrolysis.
MethodBased on the solar resource data of typical regions in China, a levelized cost of energy (LCOE) calculation model was constructed to analyze the PV power generation costs at current and limit module costs, and quantify the marginal impact of photoelectric conversion efficiency improvement on LCOE.
ResultThe results indicate that: with an annual effective power generation hours of
1200 , LCOE for crystalline silicon photovoltaic cell system can be reduced to CNY 0.133 per kWh; However, the LCOE threshold of CNY 0.1 per kWh can be achieved for perovskite solar cell, crystalline silicon-perovskite tandem cell and dual tandem cell system with higher theoretical conversion efficiency when the annual power generation hours are1008 ,1092 and 864 respectively. When the LCOE for PV power generation is less than CNY 0.1 per kWh, the cost of hydrogen production by water electrolysis can be reduced to CNY 6.16 per kg.ConclusionWith the reduction of module cost and the improvement of conversion efficiency, the LCOE for PV power generation in more than 90% of areas in China will have the potential to break through CNY 0.1/kWh. Within this cost range, green hydrogen will show a competitive advantage in production cost compared with traditional grey hydrogen and is expected to become the mainstream hydrogen source. This paper provides a quantitative basis for the industrialization of photovoltaic hydrogen production technology, and has an important reference value for optimizing the transformation path of energy structure and realizing the coordinated development of environmental benefits and economic benefits.
-
![]()

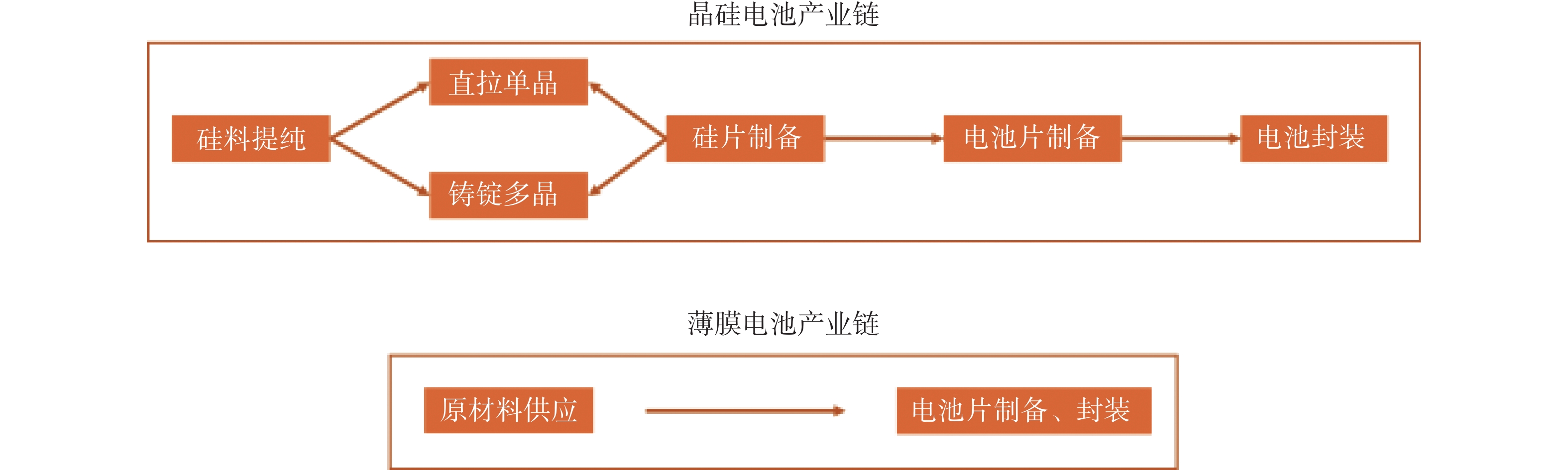

图 1 晶硅和薄膜电池的产业链对比
Figure 1. Industrial chain comparison of crystalline silicon and thin film battery
![]()

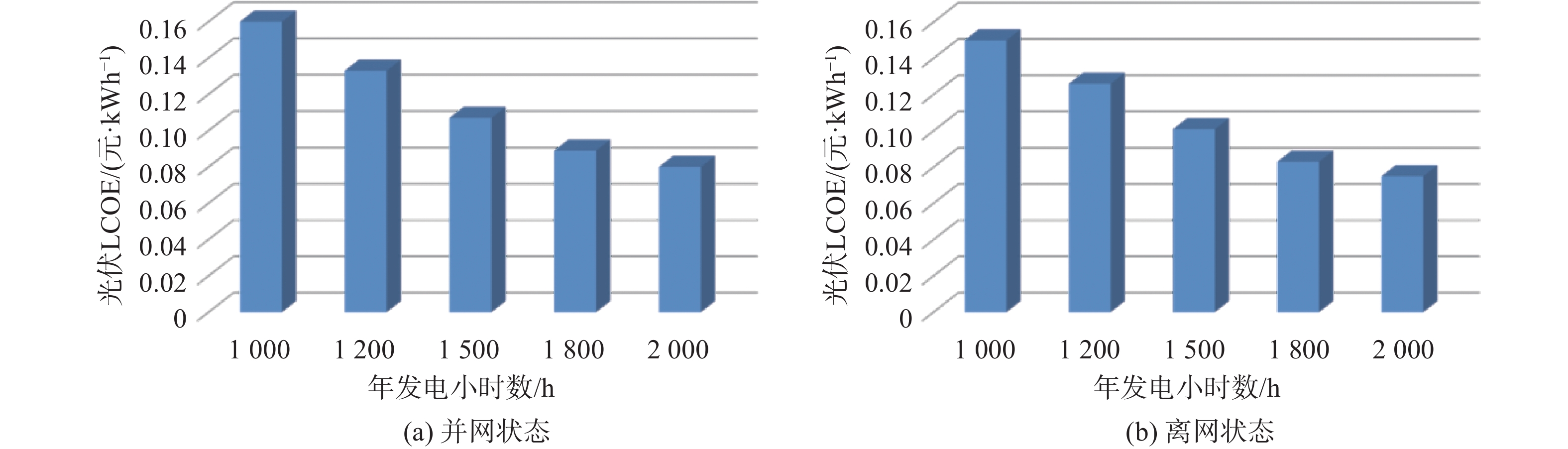

图 2 当前晶硅电池不同年发电小时数对应的光伏LCOE
Figure 2. LCOE for photovoltaics corresponding to different annual generation hours for current crystalline silicon cells
![]()

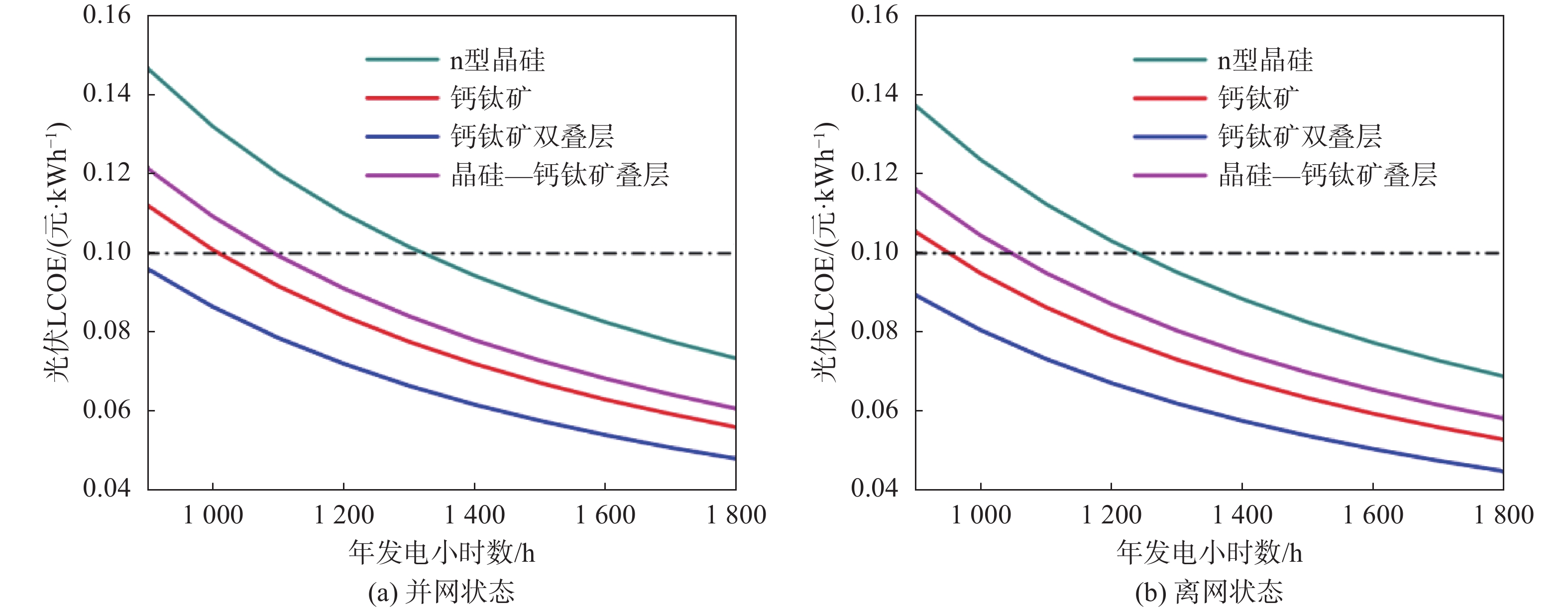

图 3 理论光电转换效率下不同年发电小时数对应的光伏LCOE
Figure 3. LCOE for photovoltaics corresponding to different annual generation hours under theoretical photoelectric conversion efficiency
表 1 晶硅电池LCOE测算
Table 1 LCOE calculation of crystalline silicon cell
初始全投资/(元·W−1) 增值税抵扣/(元·W−1) 系统残值/(元·W−1) 运维成本/(元·W−1) 年发电小时数/h 25 a发电量/(kWh·W−1) LCOE/(元·kWh−1) 3.40 0.36 0.050 0.55 1 200 26.61 0.133 3.40 0.36 0.050 0.55 1 500 33.26 0.107 3.17 0.33 0.047 0.55 1 200 26.61 0.126 3.17 0.33 0.047 0.55 1 500 33.26 0.101
下载: 导出CSV
表 2 钙钛矿电池LCOE测算
Table 2 LCOE calculation of perovskite solar cell
初始全投资/(元·W−1) 增值税抵扣/(元·W−1) 系统残值/(元·W−1) 运维成本/(元·W−1) 年发电小时数/h 7 a发电量/(kWh·W−1) LCOE/(元·kWh−1) 3.08 0.32 0.045 0.23 1 500 8.0 0.410 3.08 0.32 0.045 0.23 1 800 10.0 0.328 2.85 0.29 0.044 0.23 1 500 8.0 0.386 2.85 0.29 0.044 0.23 1 800 10.0 0.308
下载: 导出CSV
表 3 光伏组件理论极限成本的LCOE测算
Table 3 LCOE calculation of the theoretical limit cost of photovoltaic modules
电池种类 初始全投资/(元·W−1) 电池片寿命/a 系统残值/(元·W−1) 钙钛矿涂层重涂及额外物流成本/(元·W−1) LCOE/(元·kWh−1) 晶硅(并网) 3.08 25 0.045 0 0.123 晶硅(离网) 2.85 25 0.042 0 0.116 钙钛矿(并网) 2.58 10 0.038 0.937 0.142 钙钛矿(并网) 2.58 15 0.038 0.468 0.124 钙钛矿(并网) 2.58 25 0.038 0 0.107 钙钛矿(离网) 2.35 10 0.035 0.889 0.133 钙钛矿(离网) 2.35 15 0.035 0.444 0.116 钙钛矿(离网) 2.35 25 0.035 0 0.100
下载: 导出CSV
电池种类 理论光电转换效率/% 当前最高光电转换效率/% 当前已量产组件的光电转换效率/% p型单晶 24.5 23.56 23.40 n型单晶 28.7 27.30 26.81 钙钛矿 33.0 26.41 18.20 双叠层钙钛矿 44.3 32.50 26.17 晶硅-钙钛矿叠层 43.0 34.60 30.10
下载: 导出CSV
表 5 光电转换效率提升影响下的光伏组件理论极限成本的LCOE测算[15]
Table 5 LCOE calculation of the theoretical limit cost of photovoltaic modules under the influence of photoelectric conversion efficiency improvement[15]
电池种类 初始全投资/(元·W−1) 电池片价格/(元·W−1) 不随光电转换效率提高而降低的
相关成本/(元·W−1)光伏生命周期平均度电成本/
(元·kWh−1)n型晶硅(并网) 3.08 0.52 1.20 0.110 n型晶硅(离网) 2.85 0.52 1.20 0.103 钙钛矿(并网) 2.58 0.03 0.71 0.084 钙钛矿(离网) 2.35 0.03 0.71 0.079 双叠层钙钛矿(并网) 2.63 0.06 0.74 0.072 双叠层钙钛矿(离网) 2.40 0.06 0.74 0.067 晶硅-钙钛矿叠层(并网) 3.20 0.55 1.23 0.091 晶硅-钙钛矿叠层(离网) 2.97 0.55 1.23 0.087
下载: 导出CSV
表 6 不同电价对应的电解水制氢成本
Table 6 Hydrogen production costs from electrolysis at different electricity prices
成本名称 数额 年产氢量/t 104 104 104 单台设备制氢量/(Nm3·h−1) 1 000 1 000 1 000 设备数量/台 34 34 34 固定投资单台/万元 900 900 900 总固定投资/亿元 3.06 3.06 3.06 折旧/a 15 15 15 固定投资摊销/(万元·a−1) 2 040 2 040 2 040 运维成本/(万元·a−1) 442 442 442 员工工资/(万元·a−1) 200 200 200 年运行时长/(h·a−1) 3 300 3 300 3 300 固定成本/(元·kg−1) 2.67 2.67 2.67 电价/(元·kWh−1) 0.5 0.3 0.1 综合能耗/(kWh·kg−1) 52.8 52.8 52.8 耗电成本/(元·kg−1) 26.41 16.02 5.28 耗水成本/(元·kg−1) 0.08 0.08 0.08 制氢成本/(元·kg−1) 29.16 18.77 8.03
下载: 导出CSV
制氢方法 原料及价格 制氢成本/(元·kg−1) 初产物纯度/% 提纯后纯度/% 能量效率/% 煤制氢(Q5500煤) 煤450～900元/t 9.73～13.65 48～54 99.90 83 天然气制氢 天然气1.5～3.5元/Nm3 9.0～16.6 75～80 99.99 63 工业副产氢 烧碱、焦炭等副产物提纯成本300～600元/t 9.3～22.4 44～99.8 99.99 － 煤制氢蓝氢(Q5500煤) 煤450～900元/t 13.03～18.05 44～99.8 99.99 90
下载: 导出CSV
表 8 2022年全国光伏重点地区年利用小时数情况[23]
Table 8 Annual utilization hours of national PV key areas in 2022[23]
h 省（区） 资源区 地区 2021年
实际利用小时数2022年
实际利用小时数实际利用小时
数增加值内蒙古 I类 除赤峰市、通辽市、兴安盟、呼伦贝尔市以外其他地区 1 568 1 616 48 II类 赤峰市、通辽市、兴安盟、呼伦贝尔市 1 562 1 608 46 新疆 I类 哈密、塔城、阿勒泰 1 597 1 526 －71 克拉玛依 II类 除I类外其他地区 1 455 1 364 －91 甘肃 I类 嘉峪关、武威、张掖、酒泉、敦煌、金昌 1 562 1 514 －48 II类 除I类外其他地区 1 389 1 393 4 青海 I类 海西 1 474 1 430 －44 II类 除I类外其他地区 1 248 1 538 290 宁夏 I类 宁夏 1 471 1 539 68 陕西 II类 榆林、延安 1 455 1 421 －34 黑龙江 II类 黑龙江 1 503 1 644 141 吉林 II类 吉林 1 537 1 588 51 辽宁 II类 辽宁 1 327 1 459 132 河北 II类 承德、张家口、唐山 1 343 1 501 158 秦皇岛 山西 II类 忻州、朔州、大同 1 424 1 520 96
下载: 导出CSV
-
